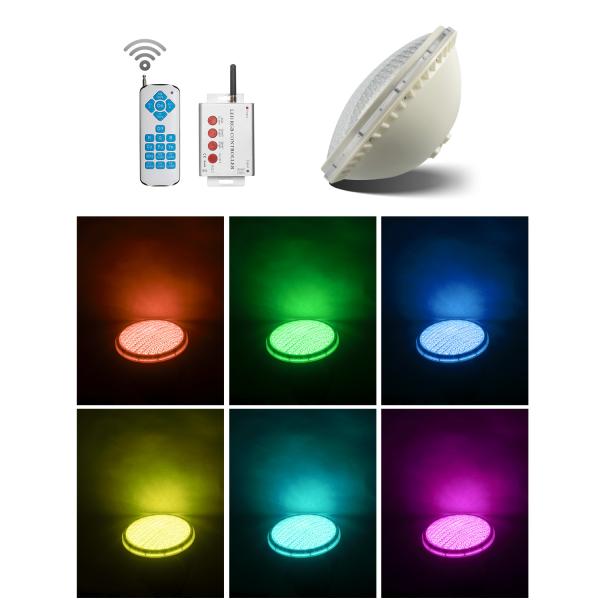

ABS Material 18W 12V IP68 Waterproof Swimming Pool Light bulb
1. ABS pool light are Anti-UV PC cover.
2. Anti-UV transparent PC cover, won't turn yellow within 2 years.
3. Environmental ABS material shell.
4. IP68 structural waterproof, not resin filled.
5. Par56 led swimming pool lights are IP68 structure waterproof.
6. Same size with the traditional PAR56, can totally match the Par56 niches.
Specification
| Product Item: HG-P56-18W-A-T |
| Parameter | Material | Engieering ABS+anti UV PC cover. |
| Working voltage | AC/DC12V |
| Wattage | 18W |
| Color | White/Red/Green/Blue |
| Light lumen | 1700LM±10％ |
| Product Size | Φ177×95mm |
| Working temperature | -20～40℃ |
| IP Rank | IP68 |
| Certificated | UL,FCC,CE, RoHS,IP68 |
| Inner box Size | 185×185×118 mm |
| G.Weight | 14000g |
| test Site | Underwater test lighting time(Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 45 | 52 | 56 | 62 | 51 | 55 | 61 | 65 |
| LED | Beam angle | 120° |
| working temperature | -20～40℃ |
Product Size
Installtion
Application
Underwater led pool light are application: Concrete pool, Vinyl pool, Outdoor Swimming Pool,
family pool, hotel pool, underwater etc.
Advantage
1. High Power high bright LED chip.
2. Lights swimming pool with eather resistance.
3. Swimming pool material need to test 8 hours LED agening test.
4. Finished product passed 30 steps quality inspection.
5. Cheap swimming pool tile get UL approval for some models.
6. 316L Stainless steel material with bracket lens.
7.aging resistance.
Some tips for you
Q1:How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip should be ≤120℃, so the center temperature at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1.Heguang with 14 years experience specialized in LED pool light/IP68 underwater lights
2.Professional R&D team,Patent design with private mold, structure waterproof technology instead of glue filled
3.Experienced in different OEM/ODM project, artwork design for free
4.Strict quality control : 30 Steps inspection before shipment,reject ratio ≤0.3%
5.Quick response to the complains ,worry-free after-sale service
6.The only one China pool light supplier who listed in UL (for US and Canada)
