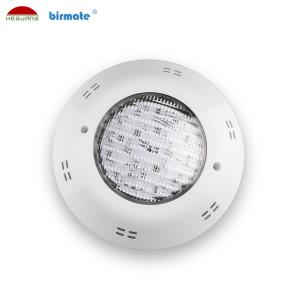

Waterproof IP68 18W RGB Color Outdoor Use Lighting Led Surface Mounted Spotlights
Product details
1. 316L Stainless steel material base shell, great heat-dissipation and corrosion-resistant.
2. IP68 Structure waterproof, without resin-filled
3. Patented 4-layers waterproof structure, more stable than resin-filled pool lights
4. VDE standard rubber wire, connected with IP68 nickel-plated copper connector.
5. LED surface mounted spotlights with IP68 nickel plated brass connector +VED standard.
Product Features
1. All products succeeded in 10m deep water testing before delivery.
2. 8 hours aging testing, 30 steps quality inspections, assure the great quality pool light.
3. Constant current driver, comply with CE & EMC standard.
4. IP68 Structure waterproof, without resin-filled.
5. surface mount led can lights has transparent PC cover, uniform lighting no dazzing.
6. 2-3MM aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity.
Specification
| HG-PL-18X1W-C2-RGB-T/HG-P56-18X1W-C2-RGB-K |
| Lamp paramater | Material | ABS + Transparent PC cover |
| Light dimension | Φ290×49.5mm |
| Input voltage | AC12 |
| Wattage | 18W±10％ |
| Light lumen | 630LM±10％ |
| Halogen replacement | / |
| Beam angle | 120° |
| BASE | Wire out |
| CCT | RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220V coil transformer |
| Wattage | 1.5W |
| cable | 2 wires |
| Control way | Synchronous control effect |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 65 | 70 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. outdoor surface mount lights Must be 8 hours aging test.
3. Finished products all passed 30 steps quality inspection
4. IP68 structure waterproof, can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
Application
Led lighting for the pool application: Concrete pool ,Vinyl pool ,Outdoor Swimming Pool ,family pool,hotel pool ,underwater etc.
Packing List
| Item | HG-PL-18x1W-C2-RGB-T |
| Product weight | 1100G |
| color box size | 185×185×118mm |
| Carton/pcs | 20pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 26.8KG |
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip should be ≤120℃,
so the center temperature at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat through structure.
4. According to the LED characteristic, the center temperature at the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is less than three per thousand .
